phone guy Posted July 12, 2022 Share #126 Posted July 12, 2022 9 hours ago, pocopico said: @fbelavenuto Since you went all the way and designed a whole new way of delivering extensions. I was thinking about the modules. Can we deliver the modules as a whole bundle of ~10MB each e.g. 4.4.180-geminilake.mods and then only enable or disable the loading ? So with that module bundle and if its required by the hardware (similar to what we do with the auto detection of the hardware and extensions ) , on the fly load the modules. 9 hours ago, fbelavenuto said: Good idea!! I'll leave it on the to-do list to study this idea for the future. Having all available modules, enable and disable as needed would be amazing if you guys work that out. I think thats an excellent idea. (not that my opinion means much). 👍 2 Quote Link to comment Share on other sites More sharing options...
use-nas Posted July 12, 2022 Share #127 Posted July 12, 2022 How to disable the Misc addon? It does not work correctly with my processor. Quote Link to comment Share on other sites More sharing options...
pocopico Posted July 12, 2022 Share #128 Posted July 12, 2022 2 hours ago, use-nas said: How to disable the Misc addon? It does not work correctly with my processor. What is the issue ? can you provide any logs ? Quote Link to comment Share on other sites More sharing options...
Hemps Posted July 12, 2022 Share #129 Posted July 12, 2022 For those that want to get it working on ProxMox. Proxmox 7 Create VM 100 Guest OS Linux Hard Disk SATA 1 100GB or whatever CPU: 4 cores 8gb Ram e1000 network Download, extract and copy - https://github.com/fbelavenuto/arpl/releases/download/v0.1-alpha2/arpl-0.1-alpha2.img.zip Copy .img to the location on proxmox below, I used filezilla /mnt/pve/storage01/arpl.img Shell on proxmox node qm importdisk 100 /mnt/pve/storage01/arpl.img local in the hardware settings, double-click and add as SATA Disk 0 Put the sata0 device in the first place in the boot order, activate it and start the VM. 1 Quote Link to comment Share on other sites More sharing options...
use-nas Posted July 12, 2022 Share #130 Posted July 12, 2022 (edited) 43 минуты назад, pocopico сказал: acpi-cpufreq always off j3455 processor Edited July 12, 2022 by use-nas Quote Link to comment Share on other sites More sharing options...
pocopico Posted July 12, 2022 Share #131 Posted July 12, 2022 (edited) 40 minutes ago, use-nas said: acpi-cpufreq always off j3455 processor do you mind sharing the output of cat /proc/cpuinfo |grep flags Edited July 12, 2022 by pocopico Quote Link to comment Share on other sites More sharing options...
use-nas Posted July 12, 2022 Share #132 Posted July 12, 2022 (edited) acpi-cpufreq on cat /proc/cpuinfo |grep flags flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx pdpe1gb rdtscp lm constant_tsc arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 sdbg cx16 xtpr pdcm sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave rdrand lahf_lm 3dnowprefetch intel_pt ibrs ibpb stibp tpr_shadow vnmi flexpriority ept vpid fsgsbase tsc_adjust smep erms mpx rdseed smap clflushopt sha_ni xsaveopt xsavec xgetbv1 dtherm ida arat pln pts arch_capabilities ls -ltr /sys/devices/system/cpu/cpufreq/* 2>/dev/null | wc -l 81 Edited July 12, 2022 by use-nas Quote Link to comment Share on other sites More sharing options...
pocopico Posted July 12, 2022 Share #133 Posted July 12, 2022 (edited) 2 hours ago, use-nas said: cat /proc/cpuinfo |grep flags flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx pdpe1gb rdtscp lm constant_tsc arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 sdbg cx16 xtpr pdcm sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave rdrand lahf_lm 3dnowprefetch intel_pt ibrs ibpb stibp tpr_shadow vnmi flexpriority ept vpid fsgsbase tsc_adjust smep erms mpx rdseed smap clflushopt sha_ni xsaveopt xsavec xgetbv1 dtherm ida arat pln pts arch_capabilities The existence of /sys/devices/system/cpu/cpufreq/* defines whether the acpi_cpufreq will be enabled or not. You can choose the exclude it, but then if the service is not started the immediate shutdown on ip access issue might hit you. Edited July 12, 2022 by pocopico Quote Link to comment Share on other sites More sharing options...
use-nas Posted July 12, 2022 Share #134 Posted July 12, 2022 (edited) 2 часа назад, pocopico сказал: if the service is not started the immediate shutdown on ip access issue might hit you. Asrock j3455-itx does not need any addons and drivers for 918+ and 920+, everything works without them, since the system is close to the original. Edited July 12, 2022 by use-nas Quote Link to comment Share on other sites More sharing options...
pocopico Posted July 12, 2022 Share #135 Posted July 12, 2022 2 minutes ago, use-nas said: Asrock j3455-itx does not need any addons and drivers for 918+ and 920+, everything works without them, since the system is close to the original. Then the validation for the acpi_cpufreq capability is wrong. I need to check it. 1 Quote Link to comment Share on other sites More sharing options...
fbelavenuto Posted July 12, 2022 Author Share #136 Posted July 12, 2022 4 minutes ago, pocopico said: Then the validation for the acpi_cpufreq capability is wrong. I need to check it. I'll study that too, let's try to make everything as automatic as possible. Quote Link to comment Share on other sites More sharing options...
pocopico Posted July 12, 2022 Share #137 Posted July 12, 2022 5 minutes ago, fbelavenuto said: I'll study that too, let's try to make everything as automatic as possible. I based the existence of capability on the below doc https://01.org/linuxgraphics/gfx-docs/drm/admin-guide/pm/cpufreq.html Quote Link to comment Share on other sites More sharing options...
pocopico Posted July 12, 2022 Share #138 Posted July 12, 2022 (edited) 55 minutes ago, use-nas said: Asrock j3455-itx does not need any addons and drivers for 918+ and 920+, everything works without them, since the system is close to the original. based on the below, the cpu does support speed step https://www.intel.com/content/www/us/en/products/sku/95594/intel-celeron-processor-j3455-2m-cache-up-to-2-30-ghz/specifications.html Maybe irrelevent Edited July 12, 2022 by pocopico Quote Link to comment Share on other sites More sharing options...

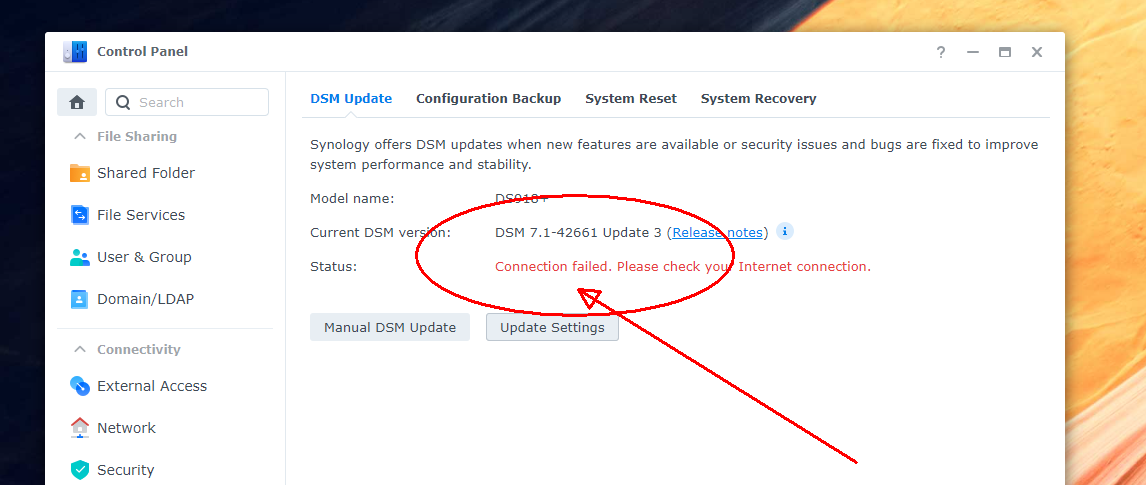

Green Posted July 12, 2022 Share #139 Posted July 12, 2022 Dell Precision T1700 i7-4790 Baremetal install DS-918+ Successful 7.1-42661 Update 3 Successful Thank You Only issue seems to be - Connection Failed Everything else seems good 1 Quote Link to comment Share on other sites More sharing options...
pigr8 Posted July 12, 2022 Share #140 Posted July 12, 2022 tested on a spare baremetal, this works really well no problems, and the updates from gui work also, nice. 1 Quote Link to comment Share on other sites More sharing options...
pigr8 Posted July 12, 2022 Share #141 Posted July 12, 2022 3 hours ago, Green said: Dell Precision T1700 i7-4790 Baremetal install DS-918+ Successful 7.1-42661 Update 3 Successful Thank You Only issue seems to be - Connection Failed Everything else seems good this is intended to do that, so no issue. 1 1 Quote Link to comment Share on other sites More sharing options...
pigr8 Posted July 12, 2022 Share #142 Posted July 12, 2022 @fbelavenuto i'm trying the same on a ESXi test enviroment, it detects the mpt3sas but on reboot and dsm boot it shows disk 34 35 36 37 (with sdae sdaj disk numbering) ecc ecc, i tried adding cmdline such as sataportmap and diskidxmap but does not seem to work. any idea? Quote Link to comment Share on other sites More sharing options...
shadowcliffs Posted July 12, 2022 Share #143 Posted July 12, 2022 ARPL worked beautifully on my baremental setup on 1037u motherboard which reportedly has 6 Sata ports but 2 of them are disabled by factory. Played with SataPortMap a bit with no luck (SataPortMap=1 installs but only sees 1 drive, SataPortMap=4 won't install). This just saved my day! 1 Quote Link to comment Share on other sites More sharing options...
phone guy Posted July 12, 2022 Share #144 Posted July 12, 2022 4 hours ago, pigr8 said: @fbelavenuto i'm trying the same on a ESXi test enviroment, it detects the mpt3sas but on reboot and dsm boot it shows disk 34 35 36 37 (with sdae sdaj disk numbering) ecc ecc, i tried adding cmdline such as sataportmap and diskidxmap but does not seem to work. any idea? I have no experience with ESXi but satamap diskidxmap have no affect on HBA cards. In Proxmox, my HBA shows drives immediately after any AHCI sata ports. In my personal system, and thanks to @flyride and @pocopico we established that Proxmox adds a phantom sata controller in Q35 mode, so I personally run my DS3622xs+ build as i440fx, with my HBA pci pass through and all my drives start at disk 1 now. In Q35 mode they would start at slot 3 or 5 (cant remember I think 3)... anyway, point is your hypervisor may be adding a phantom sata controller to the VM. Again, sorry I cant offer better advice since I have never used ESXi. Quote Link to comment Share on other sites More sharing options...
pigr8 Posted July 13, 2022 Share #145 Posted July 13, 2022 5 hours ago, phone guy said: I have no experience with ESXi but satamap diskidxmap have no affect on HBA cards. In Proxmox, my HBA shows drives immediately after any AHCI sata ports. In my personal system, and thanks to @flyride and @pocopico we established that Proxmox adds a phantom sata controller in Q35 mode, so I personally run my DS3622xs+ build as i440fx, with my HBA pci pass through and all my drives start at disk 1 now. In Q35 mode they would start at slot 3 or 5 (cant remember I think 3)... anyway, point is your hypervisor may be adding a phantom sata controller to the VM. Again, sorry I cant offer better advice since I have never used ESXi. No i dont think so, the same vm with a virtual disk as loader (tcrp) works just fine without any other changes, with arl i have this problem so must be something in the config that is not parsed right.. doing the hardware detection i finds the onboard virtual sata controller (where the arl loader is a 0:0 like tcrp) and the hba, so it adds mtp3sas correctly but then it freaks out on boot. it's probably something to do with the virtual sata controller where the loader is. Quote Link to comment Share on other sites More sharing options...
shadowcliffs Posted July 13, 2022 Share #146 Posted July 13, 2022 7 hours ago, shadowcliffs said: ARPL worked beautifully on my baremental setup on 1037u motherboard which reportedly has 6 Sata ports but 2 of them are disabled by factory. Played with SataPortMap a bit with no luck (SataPortMap=1 installs but only sees 1 drive, SataPortMap=4 won't install). This just saved my day! Just noticed that the CPU frequency shows up as 800 instead of the actual 1800. Did I miss any add-on? Quote Link to comment Share on other sites More sharing options...
phone guy Posted July 13, 2022 Share #147 Posted July 13, 2022 3 hours ago, pigr8 said: No i dont think so, the same vm with a virtual disk as loader (tcrp) works just fine without any other changes, with arl i have this problem so must be something in the config that is not parsed right.. doing the hardware detection i finds the onboard virtual sata controller (where the arl loader is a 0:0 like tcrp) and the hba, so it adds mtp3sas correctly but then it freaks out on boot. it's probably something to do with the virtual sata controller where the loader is. In proxmox, I use usb loader (virtual usb loader) and boot usb from the redpill loader. Maybe try usb load instead of sata load for your redpill/arpl loader. Then, with no virtual sata controllers, your passthrough hba should then be correct. Quote Link to comment Share on other sites More sharing options...
pigr8 Posted July 13, 2022 Share #148 Posted July 13, 2022 12 minutes ago, phone guy said: In proxmox, I use usb loader (virtual usb loader) and boot usb from the redpill loader. Maybe try usb load instead of sata load for your redpill/arpl loader. Then, with no virtual sata controllers, your passthrough hba should then be correct. in ESXi you cannot use a virtual usb, you have to choose a virtual hdd (satadom implementation) or a real usb in passthough, i have to check if it's a viable solution. Quote Link to comment Share on other sites More sharing options...
neonflx Posted July 13, 2022 Share #149 Posted July 13, 2022 (edited) Quote I can install bare metal on two different systems however, on boths cases the SAS9300-8i does get recognized during the build but no drives attached to it are detected when installing DSM Drives attached to onboard controller do get recognized ok Any suggestions? Edited July 13, 2022 by neonflx Quote Link to comment Share on other sites More sharing options...
dynaguy Posted July 13, 2022 Share #150 Posted July 13, 2022 Report here for successfully installed on ESXi 6.7 U3 and ESXi 7. - DVA1622 - vm on ESXi, e100e NIC; - arpl-0.2-alpha3.vmdk(converted to ESXi files); HDD 1 (sata0:0) - 2 virtual HDD on sata1:0 and sata1:1 - During the config, only used "auto detect" the hardware - Used the 42661 update 1 pat file(350MB) for DSM installation - Manual update the DSM to Update 3 Thanks for the great work! 1 Quote Link to comment Share on other sites More sharing options...
