Configure SataPortMap for ASM1061 6 ports

[TTTT]

0000:00:00.0 Host bridge: Intel Corporation 8th Gen Core Processor Host Bridge/DRAM Registers (rev 07)
        DeviceName: Onboard - Other
        Subsystem: Gigabyte Technology Co., Ltd Device 5000
0000:00:02.0 VGA compatible controller: Intel Corporation CoffeeLake-S GT2 [UHD Graphics 630]
        DeviceName: Onboard - Video
        Subsystem: Gigabyte Technology Co., Ltd Device d000
0000:00:08.0 System peripheral: Intel Corporation Xeon E3-1200 v5/v6 / E3-1500 v5 / 6th/7th/8th Gen Core Processor Gaussian Mixture Model
        DeviceName: Onboard - Other
        Subsystem: Gigabyte Technology Co., Ltd Device 5000
0000:00:14.0 USB controller: Intel Corporation 200 Series/Z370 Chipset Family USB 3.0 xHCI Controller
        DeviceName: Onboard - Other
        Subsystem: Gigabyte Technology Co., Ltd Device 5007
        Kernel driver in use: xhci_hcd
0000:00:16.0 Communication controller: Intel Corporation 200 Series PCH CSME HECI #1
        DeviceName: Onboard - Other
        Subsystem: Gigabyte Technology Co., Ltd Device 1c3a
0000:00:17.0 SATA controller: Intel Corporation 200 Series PCH SATA controller [AHCI mode]
        DeviceName: Onboard - SATA
        Subsystem: Gigabyte Technology Co., Ltd Device b005
        Kernel driver in use: ahci
0000:00:1c.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #5 (rev f0)
        Kernel driver in use: pcieport
0000:00:1c.5 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #6 (rev f0)
        Kernel driver in use: pcieport
0000:00:1c.6 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #7 (rev f0)
        Kernel driver in use: pcieport
0000:00:1c.7 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #8 (rev f0)
        Kernel driver in use: pcieport
0000:00:1d.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #11 (rev f0)
        Kernel driver in use: pcieport
0000:00:1f.0 ISA bridge: Intel Corporation Device a2ca
        DeviceName: Onboard - Other
        Subsystem: Gigabyte Technology Co., Ltd Device 5001
0000:00:1f.2 Memory controller: Intel Corporation 200 Series/Z370 Chipset Family Power Management Controller
        DeviceName: Onboard - Other
        Subsystem: Gigabyte Technology Co., Ltd Device 5001
0000:00:1f.3 Audio device: Intel Corporation 200 Series PCH HD Audio
        DeviceName: Onboard - Sound
        Subsystem: Gigabyte Technology Co., Ltd Device a182
0000:00:1f.4 SMBus: Intel Corporation 200 Series/Z370 Chipset Family SMBus Controller
        DeviceName: Onboard - Other
        Subsystem: Gigabyte Technology Co., Ltd Device 5001
0000:03:00.0 SATA controller: ASMedia Technology Inc. ASM1061/ASM1062 Serial ATA Controller (rev 02)
        Subsystem: ASMedia Technology Inc. Device 1060
        Kernel driver in use: ahci
0000:04:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet Controller (rev 16)
        Subsystem: Gigabyte Technology Co., Ltd Onboard Ethernet
        Kernel driver in use: r8169_lk
0001:09:00.0 SATA controller: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller (rev 11)
0001:0c:00.0 SATA controller: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller (rev 11)



Here lspci -kkq

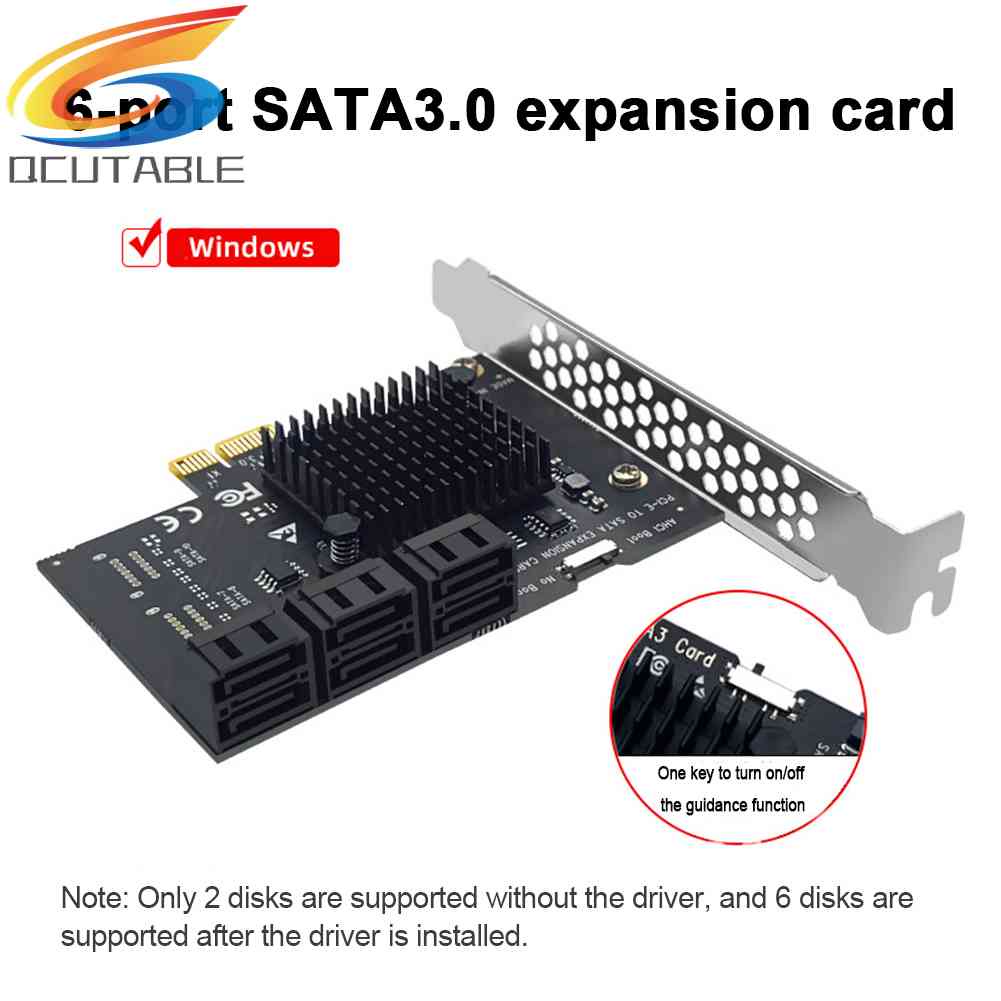

I bought a 6 port pci-e card ASM1061, after googling, I found out that it can only use 2 ports because of something like a multiplier.

My mainboard: Giga H310 4 sata ports, DS3622xs+. It recognizes 5 hard drives (4 from mainboard, 1 from pci-e), even though I have 2 hard drives installed on pci-e.



How can I configure, for example, SataPortMap, so that I can use 2 ports on PCI-E ? Thanks for all the help.













Edited July 19, 2024 by TTTT

[Trabalhador Anonimo]

This card is PCIe 1X with 6 ports. It will slow you down a lot. Try to find a card at least 4X.
